Cell Signaling Technology

Product Pathways - Jak/Stat Pathway

Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb #9167


No. Size Price
9167L 300 µl ( 30 western blots ) ¥9,325.00 现货查询 购买询价
9167S 100 µl ( 10 western blots ) ¥3,900.00 现货查询 购买询价
9167 carrier free & custom formulation / quantityemail request
Applications Dilution Species-Reactivity Sensitivity MW (kDa) Isotype
W 1:1000 Human,Mouse, Endogenous 84, 91 Rabbit IgG
IP 1:100
IHC-P 1:800
F 1:200
IF-IC 1:400
ChIP 1:100

Species cross-reactivity is determined by western blot.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, IHC-P=Immunohistochemistry (Paraffin), F=Flow Cytometry, IF-IC=Immunofluorescence (Immunocytochemistry), ChIP=Chromatin IP,

Specificity / Sensitivity

Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb detects endogenous levels of Stat1 only when phosphorylated at tyrosine 701. The antibody detects phosphorylated tyrosine 701 of p91 Stat1 and also the p84 splice variant. It does not cross-react with the corresponding phospho-tyrosines of other Stat proteins.

Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb抗体只能检测内源的在tyr701位点磷酸的Stat1蛋白。抗体能够检测tyr701位点磷酸的p91 和 p84两种剪切形式。抗体不与对应的磷酸化残基的其它Stat 蛋白反应。

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic phosphopeptide corresponding to residues surrounding Tyr701 of human Stat1.

此单克隆抗体是通过合成人源对应的Stat1 Tyr701位点周围的磷肽段来免疫动物而获得。

Western Blotting

Western Blotting

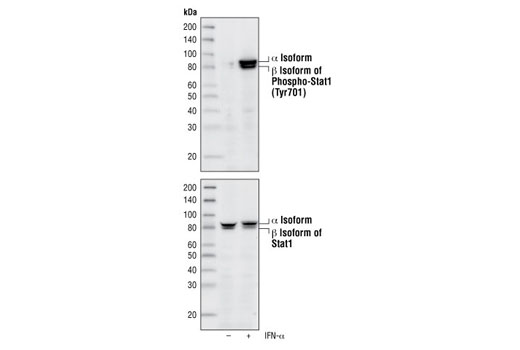

Western blot analysis of extracts from HeLa cells untreated or treated with interferon-α (IFN-α), using Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb (upper) or Stat1 Antibody (#9172) (lower).Western免疫印迹。用Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb (上图) 或 Stat1 Antibody (#9172) (下图). 研究未经处理的和经IFN-α处理的 HeLa 细胞的细胞提取液。

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded Non-Hodgkin''s lymphoma control (left) or λ phosphatase treated (right), using Phospho-Stat1 (tyr701) (58D6) Rabbit mAb.免疫组织化学染色分析石蜡包埋人非霍奇金淋巴瘤,未经处理(左图) 或经λ磷酸酶处理 (右图), 所用抗体为Phospho-Stat1 (tyr701) (58D6) Rabbit mAb。

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded stomach (chronic gastritis), using Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb.免疫组织化学染色分析石蜡包埋人慢性胃炎,所用抗体为Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb。

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells, untreated (blue) or IFN-α treated (green), using Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb compared to a nonspecific negative control antibody (red).流式细胞仪研究未经处理的HeLa细胞(蓝色)和经IFN-alpha处理的HeLa细胞(绿色)。所用抗体为Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb和非特异性阴性对照抗体(红色)。

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded Non-Hodgkin’s lymphoma using Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb #9167 in the presence of control peptide (left) or Phospho-Stat1 (Tyr701) Blocking Peptide (right).免疫组织化学染色分析石蜡包埋人非霍奇金淋巴瘤。在对照多肽(左图) 或Phospho-Stat1 (Tyr701)封闭多肽的存在下用抗体Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb #9167 进行研究。

IHC-F (frozen)

IHC-F (frozen)

Immunohistochemical analysis of frozen SKOV-3 xenograft using Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb.免疫组织化学染色分析冷冻SKOV-3异种移植物,所用抗体为Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb。



Confocal immunofluorescent analysis of HeLa cells, untreated (left) or IFNα-treated #9906 (right), using Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).共聚焦免疫荧光。用Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb (绿色)研究未经处理(左图) 或者经IFNα 处理(右图)的HeLa细胞。蓝色= DRAQ5™ ( DNA 荧光染料)。

Chromatin IP

Chromatin IP

Chromatin immunoprecipitations were performed with cross-linked chromatin from 4 x 106 HT-1080 cells treated with IFN-γ (50 ng/ml) for 30 minutes and either 5 μl of Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb or 2 μl of Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human IRF-1 promoter primers, SimpleChIP® Human TAP1 Promoter Primers #5148, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.染色质免疫共沉淀。HT-1080 细胞培养至4 x 106 , 并经IFN-γ (50 ng/ml,30 min) 处理,然后用SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003进行免疫沉淀实验,本实验中用5 μl of Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb 抗体或2 μl Normal Rabbit IgG #2729 抗体。用IRF-1 promoter primers, SimpleChIP® Human TAP1 Promoter Primers #5148, 和 SimpleChIP® Human α Satellite Repeat Primers #4486对富集的DNA做real-time PCR。每个样本中沉淀的DNA量定义为相对信号与输入的总染色质相比的数值。

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis using Phospho-Stat1 (Tyr701) (58D6) Rabbit mAb on SignalSlide® Phospho-Stat1/3/5 IHC Controls #8105 (paraffin-embedded HeLa cell pellets, untreated (left), treated with Human Interferon-α1 (hIFN-α1) #8927 (middle), or treated with Human Epidermal Growth Factor (hEGF) #8916 (right).


The Stat1 transcription factor is activated in response to a large number of ligands (1) and is essential for responsiveness to IFN-α and IFN-γ (2,3). Phosphorylation of Stat1 at Tyr701 induces Stat1 dimerization, nuclear translocation, and DNA binding (4). Stat1 protein exists as a pair of isoforms, Stat1α (91 kDa) and the splice variant Stat1β (84 kDa). In most cells, both isoforms are activated by IFN-α, but only Stat1α is activated by IFN-γ. The inappropriate activation of Stat1 occurs in many tumors (5). In addition to tyrosine phosphorylation, Stat1 is also phosphorylated at Ser727 through a p38 mitogen-activated protein kinase (MAPK)-dependent pathway in response to IFN-α and other cellular stresses (6). Serine phosphorylation may be required for the maximal induction of Stat1-mediated gene activation.

Stat1 转录因子的激活是通过一系列的配体完成 (1) 这对IFN-α和 IFN-γ的响应非常重要(2,3)。 在 Tyr701位点的磷酸化诱导 Stat1的形成二聚体, 入核和DNA结合(4)。 Stat1 蛋白是以成对的形式存在Stat1α (91 kDa) 和 另外的剪切方式Stat1β (84 kDa)。在很多细胞中,这两种形式都是通过IFN-α激活。但是有时 Stat1α是被 IFN-γ激活。 Stat1这种不适当的激活方式在存在于很多肿瘤中(5)。除了酪氨酸磷酸化,Stat1 也能通过p38有丝分裂激活蛋白激酶依赖的通路在Ser727位点磷酸化而激活,从而响应IFN-α 和其它的细胞胁迫(6)。丝氨酸磷酸化对最大化的诱导Stat1介导的基因激活也是必需的。

  1. Heim, M.H. (1999) J Recept Signal Transduct Res 19, 75-120.
  2. Durbin, J.E. et al. (1996) Cell 84, 443-50.
  3. Meraz, M.A. et al. (1996) Cell 84, 431-42.
  4. Ihle, J.N. et al. (1994) Trends Biochem Sci 19, 222-7.
  5. Frank, D.A. (1999) Mol Med 5, 432-56.
  6. Wen, Z. et al. (1995) Cell 82, 241-50.

Application References

Have you published research involving the use of our products? If so we'd love to hear about it. Please let us know!


Companion Products

For Research Use Only. Not For Use In Diagnostic Procedures.

U.S. Patent No. 5,675,063.

DRAQ5 is a registered trademark of Biostatus Limited.
