Cell Signaling Technology

Product Pathways - Lymphocyte Signaling

TIM-3 (D5D5R™) XP® Rabbit mAb #45208

No. Size Price
45208S 100 µl ( 10 western blots ) ¥7,500.00 现货查询 购买询价
45208T 20 µl ( 2 western blots ) ¥2,000.00 现货查询 购买询价
45208 carrier free & custom formulation / quantityemail request
Applications Dilution Species-Reactivity Sensitivity MW (kDa) Isotype
W 1:1000 Human, Endogenous 45-70 Rabbit IgG
IP 1:50
IHC-P 1:400
F 1:50

Species cross-reactivity is determined by western blot.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, IHC-P=Immunohistochemistry (Paraffin), F=Flow Cytometry,

Specificity / Sensitivity

TIM-3 (D5D5R) XP® Rabbit mAb recognizes endogenous levels of total TIM-3 protein.

Source / Purification

Monoclonal antibody is produced by immunizing animals with recombinant protein specific to the extracellular domain of human TIM-3 protein.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human tonsil using TIM-3 (D5D5R) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from primary human CD4+ T cells and various cell lines using TIM-3 (D5D5R) XP® Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). CD4+ T cells were purified from human blood and stimulated for 9 days using beads coated with CD3 and CD28 antibodies in the presence of Human Interleukin-2 (hIL-2) #8907 (6.7 ng/ml).

Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, untransfected (-) or transfected with a construct expressing full-length human Myc/DDK-tagged TIM-3 (hTIM-3-Myc/DDK; +), using TIM-3 (D5D5R) XP® Rabbit mAb.

Flow Cytometry

Flow Cytometry

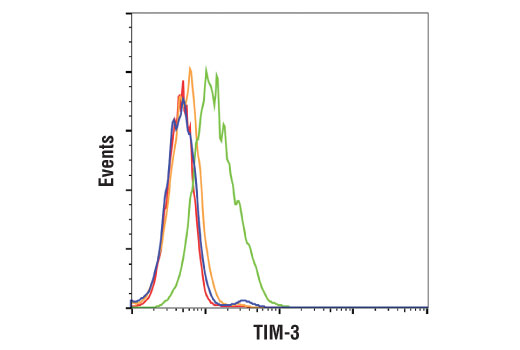

Flow cytometric analysis of Jurkat cells (blue) and primary CD4+ T cells (green) using TIM-3 (D5D5R) XP® Rabbit mAb. Controls were run on Jurkat cells (orange) and primary CD4+ T cells (red) using concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900. Anti-rabbit IgG (H+L), F(ab')2 fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody. CD4+ T cells were purified from human blood and stimulated for 9 days using beads coated with CD3 and CD28 antibodies in the presence of Human Interleukin-2 (hIL-2) #8907 (6.7 ng/ml).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded cell pellets, primary CD4+ T cells (left) and HT-29 cells (right), using TIM-3 (D5D5R) XP® Rabbit mAb. CD4+ T cells were purified from human blood and stimulated for 7 days using beads coated with CD3 and CD28 antibodies in the presence of Human Interleukin-2 (hIL-2) #8907 (6.7 ng/ml).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human colon carcinoma using TIM-3 (D5D5R) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lung carcinoma using TIM-3 (D5D5R) XP® Rabbit mAb. Note staining of alveolar macrophages.

Background

T cell Ig- and mucin-domain-containing molecules (TIMs) are a family of transmembrane proteins expressed by various immune cells. TIM-3 is an inhibitory molecule that is induced following T cell activation (1-3 ). TIM-3 is expressed by exhausted T cells in the settings of chronic infection and cancer (4,5), and tumor-infiltrating T cells that coexpress PD-1 and TIM-3 exhibit the most severe exhausted phenotype (5). Tumor-infiltrating dendritic cells (DCs) also express TIM-3. TIM-3 expression on DCs was found to suppress innate immunity by reducing the immunogenicity of nucleic acids released by dying tumor cells (6). Research studies show that heterodimerization of TIM-3 with CEACAM-1 is critical for the inhibitory function of TIM-3, and co-blockade of TIM-3 and CEACAM-1 enhanced antitumor responses in a mouse model of colorectal cancer (7). In addition, blockade of TIM-3 in mouse models of autoimmunity enhanced the severity of disease (1). Finally, binding of Galectin-9 to TIM-3 expressed by Th1 cells induces T cell death (8).

  1. Monney, L. et al. (2002) Nature 415, 536-41.
  2. Sánchez-Fueyo, A. et al. (2003) Nat Immunol 4, 1093-101.
  3. Sabatos, C.A. et al. (2003) Nat Immunol 4, 1102-10.
  4. Jones, R.B. et al. (2008) J Exp Med 205, 2763-79.
  5. Sakuishi, K. et al. (2010) J Exp Med 207, 2187-94.
  6. Chiba, S. et al. (2012) Nat Immunol 13, 832-42.
  7. Huang, Y.H. et al. (2015) Nature 517, 386-90.
  8. Zhu, C. et al. (2005) Nat Immunol 6, 1245-52.

Application References

Have you published research involving the use of our products? If so we'd love to hear about it. Please let us know!

Protocols

Companion Products


For Research Use Only. Not For Use In Diagnostic Procedures.

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

SignalStain is a trademark of Cell Signaling Technology, Inc.

Alexa Fluor is a registered trademark of Life Technologies Corporation.

Tween is a registered trademark of ICI Americas, Inc.

Cell Signaling Technology® is a trademark of Cell Signaling Technology, Inc.
