Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb #3033

NF-kB   NFkappaB   NFkB   nfκb p65   nuclear factor kappa B   p65 NF-kB   Rel   RelA   sc-136548

No. Size Price
3033L 300 µl ( 30 western blots ) ¥8,792.00 现货查询 购买询价
3033S 100 µl ( 10 western blots ) ¥3,780.00 现货查询 购买询价
3033T 20 µl ( 2 western blots ) ¥1,500.00 现货查询 购买询价
3033 carrier free & custom formulation / quantityemail request
Applications Dilution Species-Reactivity Sensitivity MW (kDa) Isotype
W 1:1000 Human,Mouse,Rat,Hamster,Monkey,Pig, Endogenous 65 Rabbit IgG
IP 1:50
F 1:1600
IF-IC 1:100

Species cross-reactivity is determined by western blot.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, F=Flow Cytometry, IF-IC=Immunofluorescence (Immunocytochemistry),


Species predicted to react based on 100% sequence homology: Dog,

Specificity / Sensitivity

Phospho-NF-kappaB p65 (Ser536) (93H1) Rabbit mAb detects NF-κB p65 only when phosphorylated at Ser536. It does not cross-react with the p50 subunit or other related proteins.

Phospho-NF-kappaB p65 (Ser536) (93H1) Rabbit mAb只能检测内源的在ser536位点磷酸化的NF-kappaB p65蛋白。此抗体不与p50亚单位或其他相关的蛋白交叉反应。

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic phosphopeptide corresponding to residues surrounding Ser536 of human NF-κB p65.

此单克隆抗体是通过合成人源对应的NF-kappaB p65 Ser536位点周围的磷肽段来免疫动物而获得。

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells, untreated (blue) or TNF-α-treated (green), using Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb compared to a nonspecific negative control antibody (red).流式细胞仪研究未经处理的HeLa细胞(蓝色)和经TNF-α处理的HeLa细胞(绿色)。所用抗体为Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb 并与非特异性的阴性对照抗体比对(红色)。

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa and NIH/3T3 cells, untreated or TNF-α treated (#2169, 20 ng/ml for 5 minutes), using Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb (upper) or NF-κB p65 Antibody #3034 (lower).Western免疫印迹。用Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb (上图) 或NF-κB p65 Antibody #3034 (下图)研究未经处理的和经TNF-α (#2169, 20 ng/ml, 5 min) 处理的HeLa和 NIH/3T3 细胞的细胞提取液。

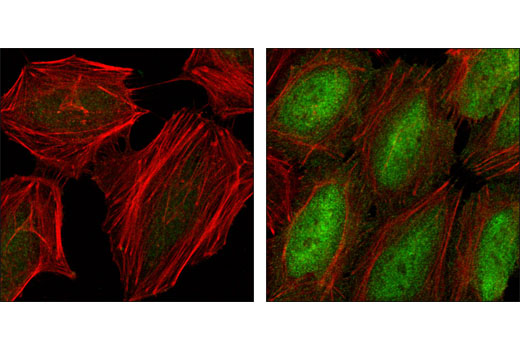

Confocal immunofluorescent analysis of HeLa cells, untreated (left) and TNF-α treated (#8902 at 20 ng/ml for 20 min, right), using Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® phalloidin 555 (red).共聚焦免疫荧光分析未经处理(左图)和经TNF-α(#8902 20 ng/ml,20 min, 右图)处理的HeLa细胞。所用的抗体为Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb (绿色), 肌动蛋白用Alexa Fluor® phalloidin 555 (红色)标记。

Western Blotting

Western Blotting

Western blot analysis of extracts from THP-1 cells, differentiated with TPA (#9905, 80 nM for 24h) and treated with 1 μg/ml LPS for the indicated times, using Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb (upper) and NF-κB p65 (C22B4) Rabbit mAb #4764 (lower).Western免疫印迹。用Phospho-NF-κB p65 (Ser536) (93H1) Rabbit mAb (上图) 和 NF-κB p65 (C22B4) Rabbit mAb #4764 (下图) 研究经 TPA 分化24小时(#9905, 80 nM) 并用1 μg/ml LPS 处理一定时间的THP-1细胞的细胞提取液。


Transcription factors of the nuclear factor κ B (NF-κB)/Rel family play a pivotal role in inflammatory and immune responses (1,2). There are five family members in mammals: RelA, c-Rel, RelB, NF-κB1 (p105/p50), and NF-κB2 (p100/p52). Both p105 and p100 are proteolytically processed by the proteasome to produce p50 and p52, respectively. Rel proteins bind p50 and p52 to form dimeric complexes that bind DNA and regulate transcription. In unstimulated cells, NF-κB is sequestered in the cytoplasm by IκB inhibitory proteins (3-5). NF-κB-activating agents can induce the phosphorylation of IκB proteins, targeting them for rapid degradation through the ubiquitin-proteasome pathway and releasing NF-κB to enter the nucleus where it regulates gene expression (6-8). NIK and IKKα (IKK1) regulate the phosphorylation and processing of NF-κB2 (p100) to produce p52, which is then translocated to the nucleus (9-11).

核因子κ B(NF-κB)/Rel 家族的转录调控因子在炎症反应和免疫反应中发挥了至关重要的作用(1,2)。在哺乳动物中一共有5个家族成员: RelA, c-Rel, RelB, NF-κB1 (p105/p50) 和 NF-κB2 (p100/p52)。 p105 和 p100 在蛋白水解酶的作用下分别形成p50 和 p52。Rel与p50和p52形成二聚体,此复合体能够结合到DNA上调控转录。在未刺激的状态下, NF-κB 在IκB抑制剂作用下在细胞质中处于非活性状态(3-5)。 NF-κB激活因子能够诱导 IκB 蛋白的磷酸化, 这就使IκB能够快速的经过泛素化-蛋白酶通路降解从而释放 NF-κB,激活的NF-κB入核调控基因的表达(6-8)。 NIK 和 IKKα (IKK1) 调节磷酸化并促使NF-κB2 (p100) 生成p52, p52之后会入核发挥功能(9-11)。

  1. Baeuerle, P.A. and Henkel, T. (1994) Annu Rev Immunol 12, 141-79.
  2. Baeuerle, P.A. and Baltimore, D. (1996) Cell 87, 13-20.
  3. Haskill, S. et al. (1991) Cell 65, 1281-9.
  4. Thompson, J.E. et al. (1995) Cell 80, 573-82.
  5. Whiteside, S.T. et al. (1997) EMBO J 16, 1413-26.
  6. Traenckner, E.B. et al. (1995) EMBO J 14, 2876-83.
  7. Scherer, D.C. et al. (1995) Proc Natl Acad Sci USA 92, 11259-63.
  8. Chen, Z.J. et al. (1996) Cell 84, 853-62.
  9. Senftleben, U. et al. (2001) Science 293, 1495-9.
  10. Coope, H.J. et al. (2002) EMBO J 21, 5375-85.
  11. Xiao, G. et al. (2001) Mol Cell 7, 401-9.

Application References

Have you published research involving the use of our products? If so we'd love to hear about it. Please let us know!


Companion Products

For Research Use Only. Not For Use In Diagnostic Procedures.

U.S. Patent No. 5,675,063.

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

Alexa Fluor is a registered trademark of Life Technologies Corporation.
